ZC 420x50 10MIL CCW lock

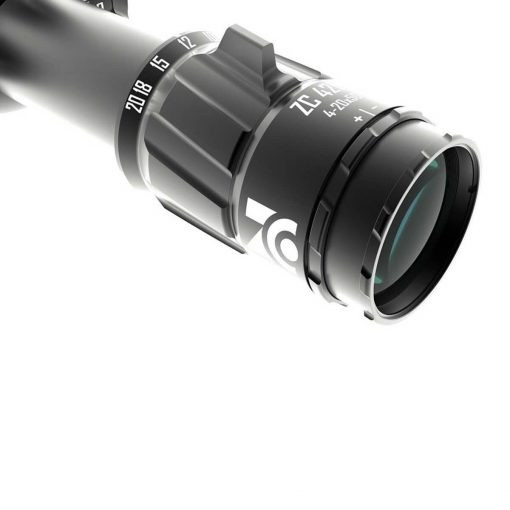

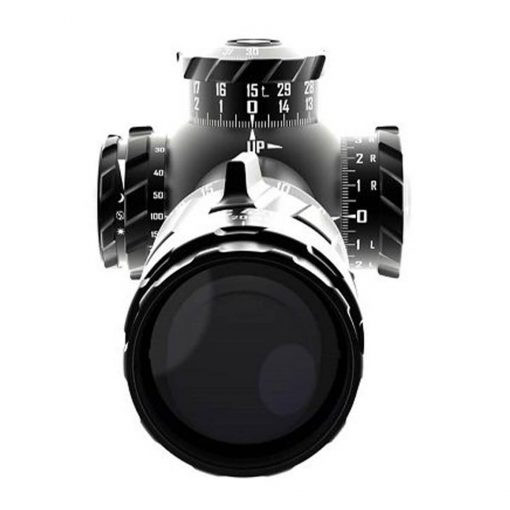

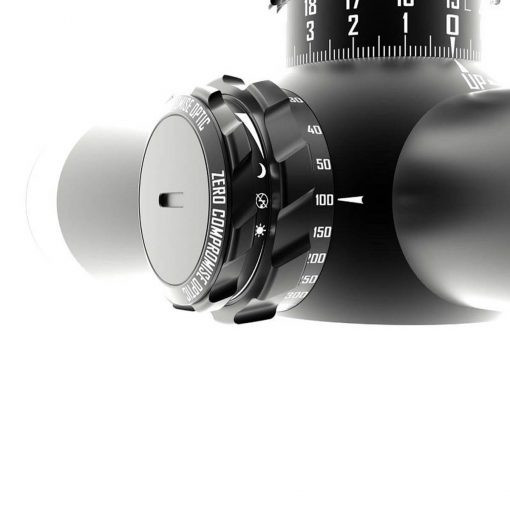

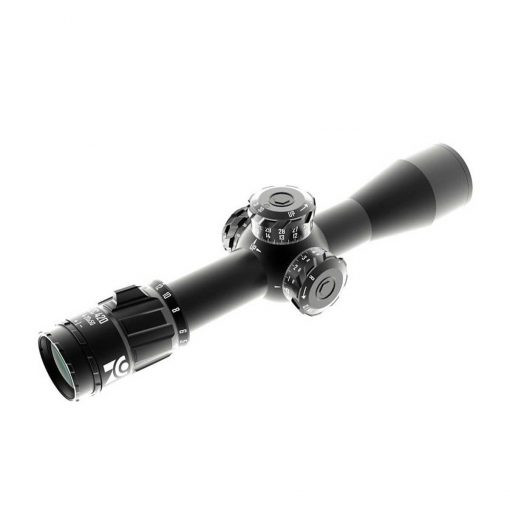

The Zero Compromise Optic ZC420 combines superior optical performance with unsurpassed mechanical precision in the best ultra -short design ever developed.
This rifle scope combines supreme precision, brilliant optics and ruggedness in a compact package that rivals much larger scopes. Measuring 325mm (12.8 inches) long and weighing only 1036g, this small scope is ideal for any application where size and maximum performance are paramount.
The low magnification provides a wide field of view for your close-range engagements, while the mechanical system allows for 35 mils of elevation adjustment. Never before has so much performance been combined in such an elegant and compact riflescope.
Unsurpassed optical performance.
Our optical engineers have set the next standard for clarity, light transmission and resolution in a compact package. At this magnification range and lens size, such performance has never been seen before. Color reproduction allows for the best possible imaging, total light transmission is 92% with first class
Magnification 4-20
Objective diameter (mm) 50
Exit pupil (mm) 10-9-2.5
Field of view max. / min. (m/100m) 9.3‘-2‘
Field of view (ft/100Yds.) 28‘-6‘
Eye relief (mm) >90 mm
Lighttransmission (%) 92%

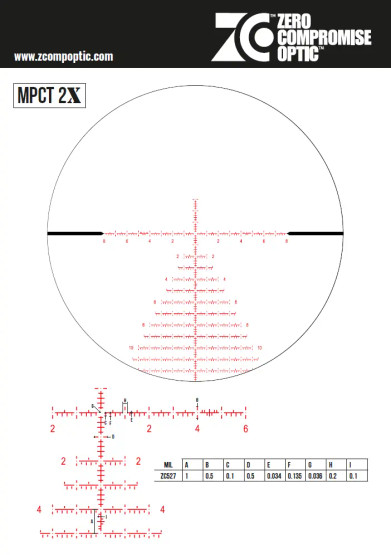

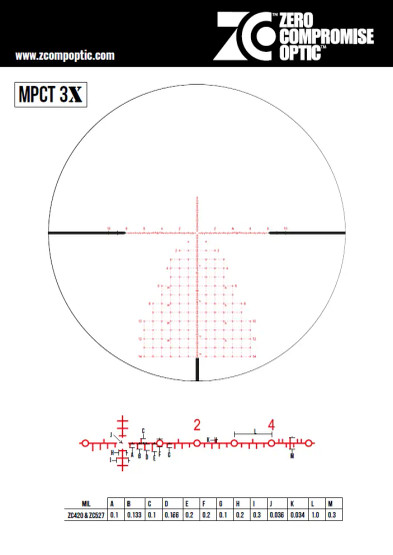

Reticle image plane 1.
Diopter adjustment (Dpt.) -3 / 2
Main tube diameter (mm) 36 mm
Length (mm) 328 mm
Weight (g) 1036g
Elevation adjustment MRAD/100m 35
Windage adjustment MRAD/100m 20
Click value MRAD/100m 0.1
Turret rotation CW/CCW
Filter thread Objective (mm) M54x0.75
Impermeability 4 m water depth
Temperature Function (C°) -25°/60°
Illuminated color Red / Green
Locking Elevation / Windage Elevation & Windage
AIM- automatic illumination managment Yes (after 2 mins or depending on position/ directionality; after 2 hours complete shutdown)
Power supply CR2032
